Implements non-core-specific acquisition macros. More...

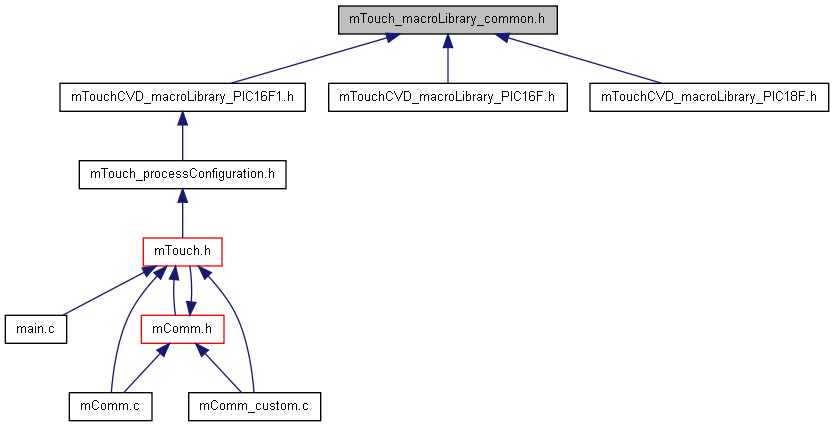

Go to the source code of this file.
Defines | |
| #define | MASKBANK(var, bank) |
| Masks the bank out of the variable address for ASM code usage. Requires that the actual bank bits being masked equal the bank value provided. | |
| #define | NOBANK(var) |
| Masks the bank out of the variable address for ASM code usage. | |
Housekeeping Macros | |
These macros perform basic ISR and timer module functions such as checking that the interrupt flag is set and reloading the TMR0 counter. | |
| #define | SAVE_STATE() |
| Executes any required actions to save the current main-loop process. | |
| #define | RESTORE_STATE() |
| Executes any required actions to save the current main-loop process. | |
| #define | MTOUCH_SLEEP_STABILIZE_OSC() |
| Causes the system to wait until the oscillator's frequency has stabilized. | |
| #define | JITTER_START_TIME() |
| Calculates a random value and uses it to seed the mTouch interrupt timer. | |
| #define | JITTER_MAIN_LOOP() |
| Calculates a random value and uses it to jitter the mTouch scanning routine when operating out of the main loop. | |
| #define | MTOUCH_SCANFUNCTIONA(index) __paste(mTouch_ScanA_, index) |
| #define | MTOUCH_SCANFUNCTIONB(index) __paste(mTouch_ScanB_, index) |
| #define | CVD_SCANA_GEN(index, indexRef) |
| Function-generating macro called by MTOUCH_SCAN_FUNCTION(i). Do not use directly. | |
| #define | CVD_SCANB_GEN(index, indexRef) |
| Function-generating macro called by MTOUCH_SCAN_FUNCTION(i). Do not use directly. | |
| #define | MTOUCH_SCAN_FUNCTION(index) |
| #define | MTOUCH_SCAN_PROTOTYPE(index) |
| #define | PIC_ADC_BITS 10 |
Polishing/Finishing Macros | |
These macros perform scaling and final operations before setting the mTouchCVD_dataReady flag and allowing the main loop application to process the new data. | |
| #define | STORE_SENSOR_SCALE(index, shift) |
| Do not use directly. Expanded utility macro called by STORE_SENSOR(index). | |
| #define | STORE_LAST_SENSOR_SCALE(index, shift) |
| Do not use directly. Expanded utility macro called by STORE_SENSOR(index). | |
| #define | STORE_SINGLE_SENSOR_SCALE(index, shift) |
| Do not use directly. Expanded utility macro called by STORE_SENSOR(index) if there is only one sensor in the mTouch application. | |
| #define | STORE_SENSOR(index) |
| Scales the accumulated result of the CVD acquisition and stores it for main-application access. | |
| #define | EXIT_SENSOR(index) |
| Increments the given index variable and exits the ISR. | |
| #define | EXIT_LAST_SENSOR(index) |
| Performs several important functions after all sensors have been scanned. | |
| #define | EXIT_LAST_SENSOR_MAIN() |
| Do not use directly. Utility macro used by EXIT_LAST_SENSOR() to decrement the oversampling counter. | |
| #define | EXIT_LAST_SENSOR_DECINDEX(index) |
| Do not use directly. Utility macro used by EXIT_LAST_SENSOR() to reset the index variable. | |
| #define | MTOUCH_EXIT_SCAN_FUNCTION(index) __3paste(MTOUCH_EXIT_SENSOR,index,()) |
| #define | MTOUCH_INC_INDEX_AND_STORE_RESULT() |
| #define | SET_DATA_READY_FLAG() |
| Sets the dataReady flag to signal the main application of a new reading. | |
Detailed Description
Implements non-core-specific acquisition macros.
Definition in file mTouch_macroLibrary_common.h.
Define Documentation
| #define CVD_SCANA_GEN | ( | index, | |
| indexRef | |||
| ) |
Function-generating macro called by MTOUCH_SCAN_FUNCTION(i). Do not use directly.
- Parameters:
-
[in] index the index of the sensor to be scanned [in] indexRef the index of the sensor to be used as the reference This macro creates a new CVD 'Scan A' function based on the index value provided. The function's name will be mTouch_ScanA_#().
Definition at line 254 of file mTouch_macroLibrary_common.h.
| #define CVD_SCANB_GEN | ( | index, | |
| indexRef | |||
| ) |
Function-generating macro called by MTOUCH_SCAN_FUNCTION(i). Do not use directly.
- Parameters:
-
[in] index the index of the sensor to be scanned [in] indexRef the index of the sensor to be used as the reference This macro creates a new CVD 'Scan B' function based on the index value provided. The function's name will be mTouch_ScanB_#().
Definition at line 278 of file mTouch_macroLibrary_common.h.
| #define EXIT_LAST_SENSOR_DECINDEX | ( | index ) |
Do not use directly. Utility macro used by EXIT_LAST_SENSOR() to reset the index variable.
- Parameters:
-
[in] index the index variable to reset to 0
Definition at line 678 of file mTouch_macroLibrary_common.h.
| #define EXIT_LAST_SENSOR_MAIN | ( | ) |
Do not use directly. Utility macro used by EXIT_LAST_SENSOR() to decrement the oversampling counter.
Definition at line 670 of file mTouch_macroLibrary_common.h.
| #define JITTER_MAIN_LOOP | ( | ) |
do { \ asm("BANKSEL _mTouch_jitter" ); /* Make sure we're starting in the correct bank */ \ asm("bcf " ___mkstr(_STATUS) ",0"); /* Clear the carry bit */ \ asm("rrf " ___mkstr(_mTouch_jitter) ",W"); /* Right shift the current jitter seed value */ \ asm("btfsc " ___mkstr(_STATUS) ",0"); /* Check the carry bit - if set, perform XOR */ \ asm("xorlw 0xB4" ); /* (cond) XOR the jitter seed with 0xB4 */ \ asm("movwf " ___mkstr(_mTouch_jitter) ); /* Store the result as the new jitter seed value */ \ for (uint8_t i = (mTouch_jitter & MTOUCH_JITTER_MASK); i > 0; i--); /* Delay loop */ \ } while (0)
Calculates a random value and uses it to jitter the mTouch scanning routine when operating out of the main loop.
Implements a linear feedback shift register algorithm to increase the randomness of the jitter function. This implementation costs one byte of RAM.
Definition at line 196 of file mTouch_macroLibrary_common.h.
| #define JITTER_START_TIME | ( | ) |
do { \ asm("BANKSEL _mTouch_jitter" ); /* Make sure we're starting in the correct bank */ \ asm("bcf " ___mkstr(_STATUS) ",0" ); /* Clear the carry bit */ \ asm("rrf " ___mkstr(_mTouch_jitter) ",W" ); /* Right shift the current jitter seed value */ \ asm("btfsc " ___mkstr(_STATUS) ",0" ); /* Check the carry bit - if set, perform XOR */ \ asm("xorlw 0xB4" ); /* (cond) XOR the jitter seed with 0xB4 */ \ asm("movwf " ___mkstr(_mTouch_jitter) ); /* Store the result as the new jitter seed value */ \ asm("andlw " ___mkstr(MTOUCH_JITTER_MASK) ); /* Mask the seed value to limit the number of bits */ \ asm("BANKSEL " ___mkstr(MTOUCH_ISR_TMR_ASM) ); /* Move to Bank 0 to access timer SFR */ \ asm("clrf " ___mkstr(NOBANK(MTOUCH_ISR_TMR_ASM))); /* Clear timer */ \ asm("addwf " ___mkstr(NOBANK(MTOUCH_ISR_TMR_ASM))); /* Add the masked LFSR value as an offset to timer */ \ } while (0)
Calculates a random value and uses it to seed the mTouch interrupt timer.
Implements a linear feedback shift register algorithm to increase the randomness of the jitter function. This implementation costs one byte of RAM.
Definition at line 171 of file mTouch_macroLibrary_common.h.
| #define MASKBANK | ( | var, | |
| bank | |||
| ) |
Masks the bank out of the variable address for ASM code usage. Requires that the actual bank bits being masked equal the bank value provided.
- Parameters:
-
var the variable address to mask bank the bank location of the variable
Definition at line 68 of file mTouch_macroLibrary_common.h.
| #define MTOUCH_EXIT_SCAN_FUNCTION | ( | index ) | __3paste(MTOUCH_EXIT_SENSOR,index,()) |
Definition at line 680 of file mTouch_macroLibrary_common.h.
| #define MTOUCH_INC_INDEX_AND_STORE_RESULT | ( | ) |
mTouch_currentSensor++; \
mTouch_prevSensor = &mTouch_acqData[mTouch_currentSensor]; \
WAIT_FOR_GODONE_BIT(); \
MTOUCH_STORE_SCAN_B();
Definition at line 682 of file mTouch_macroLibrary_common.h.
| #define MTOUCH_SCAN_FUNCTION | ( | index ) |
CVD_SCANA_GEN(index, __paste(CVD_REFSENSOR_, index)); \ CVD_SCANB_GEN(index, __paste(CVD_REFSENSOR_, index))
Definition at line 292 of file mTouch_macroLibrary_common.h.
| #define MTOUCH_SCAN_PROTOTYPE | ( | index ) |
void MTOUCH_SCANFUNCTIONA(index)(void); \ void MTOUCH_SCANFUNCTIONB(index)(void);
Definition at line 295 of file mTouch_macroLibrary_common.h.
| #define MTOUCH_SCANFUNCTIONA | ( | index ) | __paste(mTouch_ScanA_, index) |
Definition at line 240 of file mTouch_macroLibrary_common.h.
| #define MTOUCH_SCANFUNCTIONB | ( | index ) | __paste(mTouch_ScanB_, index) |
Definition at line 241 of file mTouch_macroLibrary_common.h.
| #define MTOUCH_SLEEP_STABILIZE_OSC | ( | ) |
do { \ while (!HFIOFL); \ } while(0)
Causes the system to wait until the oscillator's frequency has stabilized.
Definition at line 153 of file mTouch_macroLibrary_common.h.
| #define NOBANK | ( | var ) |
Masks the bank out of the variable address for ASM code usage.
- Parameters:
-
var the variable address to mask
Definition at line 75 of file mTouch_macroLibrary_common.h.
| #define PIC_ADC_BITS 10 |
Definition at line 514 of file mTouch_macroLibrary_common.h.
| #define RESTORE_STATE | ( | ) |
do { \ asm("movf _int_fsr,W"); \ asm("movwf _FSR"); \ asm("movf _int_pclath,W"); \ asm("movwf _PCLATH"); \ asm("movf _int_status,W"); \ asm("movwf _STATUS"); \ asm("swapf _int_w, W"); \ } while (0)
Executes any required actions to save the current main-loop process.
Definition at line 134 of file mTouch_macroLibrary_common.h.
| #define SAVE_STATE | ( | ) |
do { \ asm("movwf _int_w"); \ asm("swapf _int_w, F"); \ asm("movf _STATUS, W"); \ asm("clrf _STATUS"); \ asm("movwf _int_status"); \ asm("movf _PCLATH, W"); \ asm("clrf _PCLATH"); \ asm("movwf _int_pclath"); \ asm("movf _FSR, W"); \ asm("movwf _int_fsr"); \ } while (0)
Executes any required actions to save the current main-loop process.
Definition at line 112 of file mTouch_macroLibrary_common.h.
| #define STORE_LAST_SENSOR_SCALE | ( | index, | |
| shift | |||
| ) |
Do not use directly. Expanded utility macro called by STORE_SENSOR(index).
- Parameters:
-
[in] index the index of the sensor to be scaled and stored [in] shift the number of times to shift the accumulator value to the right before storing its value in the mTouch_sensorData array
Definition at line 559 of file mTouch_macroLibrary_common.h.
| #define STORE_SENSOR_SCALE | ( | index, | |
| shift | |||
| ) |
Do not use directly. Expanded utility macro called by STORE_SENSOR(index).
- Parameters:
-
[in] index the index of the sensor to be scaled and stored [in] shift the number of times to shift the accumulator value to the right before storing its value in the mTouch_sensorData array
Definition at line 545 of file mTouch_macroLibrary_common.h.
| #define STORE_SINGLE_SENSOR_SCALE | ( | index, | |
| shift | |||
| ) |
Do not use directly. Expanded utility macro called by STORE_SENSOR(index) if there is only one sensor in the mTouch application.
- Parameters:
-
[in] index the index of the sensor to be scaled and stored [in] shift the number of times to shift the accumulator value to the right before storing its value in the mTouch_sensorData array
Definition at line 573 of file mTouch_macroLibrary_common.h.
